New Build, Whimple

This new build project in Devon, featured premium hardwood joinery, bespoke staircases and expertly finished windows and doors.
devon bespoke staircases
devon bespoke staircases

devon bespoke staircases

Bespoke staircases, Whimple, Devon

For this striking project in Devon, we crafted a full suite of bespoke staircases, windows and doors, showcasing high-quality joinery throughout the home. The two cut-string staircases were custom-built with a mix of painted Sapele and clear-finished American Black Walnut, featuring bullnose treads, chamfered newels, and hand-forged iron spindles.


Alongside these staircases, we also supplied a solid Idigbo hardwood front door, with intricate panel detailing, plus flush hardwood windows and French doors. These were all fully spray-finished and factory glazed for a premium, long-lasting result.

High-quality hardwood finish
Trusted team in Devon
Detail-led new build project

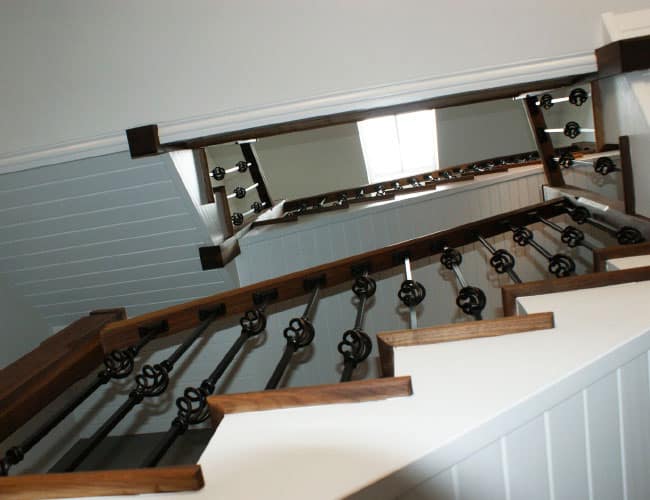

Cut String Staircases Specifications

Cut string staircases from ground to first floor with the first two treads bull nosed & two quarter space landings

With landing handrails between to join the flights together & close off the stairwell

Cut string staircases from first to second floor staircase with a lower quarter space landing & a winder top section

Return landing handrails to close off the top of the stairwell

Strings & risers are made from Sapele & have been painted

With painted Sapele TG&V boarding to finish the underside of the stairs

All the other parts are made from American Black Walnut & have been clear finished

Newels have stop chamfers & grooved & chamfer tops with chamfered drops

Black wrought iron spindles (supplied by customer)

Front Door Specifications

Front door & frame

1190mm wide x 2130mm high overall sizes

Idigbo hardwood with an Iroko flush cill with a black TSY aluminium threshold on top & double draft seals

Head & jambs finished to 90mm wide x 90mm thick

Solid panels to both sides with decorative horizontal & vertical moulded detailing & Celotex insulation in the voids

Fully hung on HQ4 black satin stainless steel hinges & fitted with a multi-point lock, black door knocker & centre knob

Fully factory spray finished with Sikkens micro-porous paint – Black satin S0.10.50

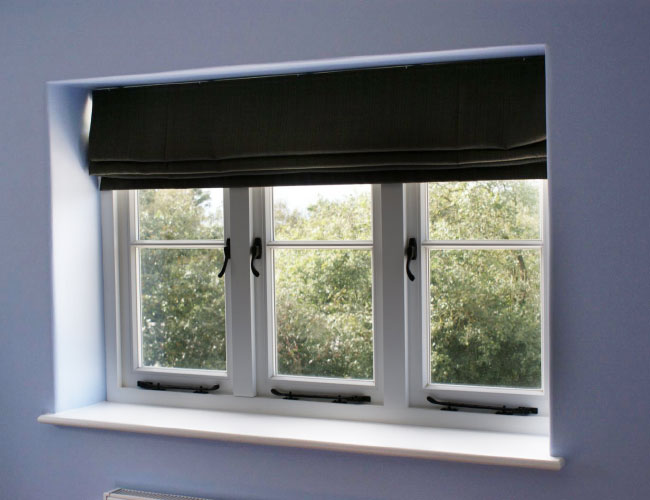

Windows Specifications

Tri-Flush Windows

Idigbo hardwood with flush Iroko cills

Framing finished 90mm wide x 70mm thick

Factory glazed & beaded internally with 24mm thick double-glazing, using planitherm total plus, argon filled units with white spacers & 20mm wide ‘stick-on’ glazing bars with 18mm white duplex bars between the panes

Double draft seals to all sides

Fully factory spray finished with Sikkens micro-porous paint - gloss white

devon bespoke staircases
devon bespoke staircases
devon bespoke staircases
devon bespoke staircases
devon bespoke staircases
devon bespoke staircases
devon bespoke staircases
